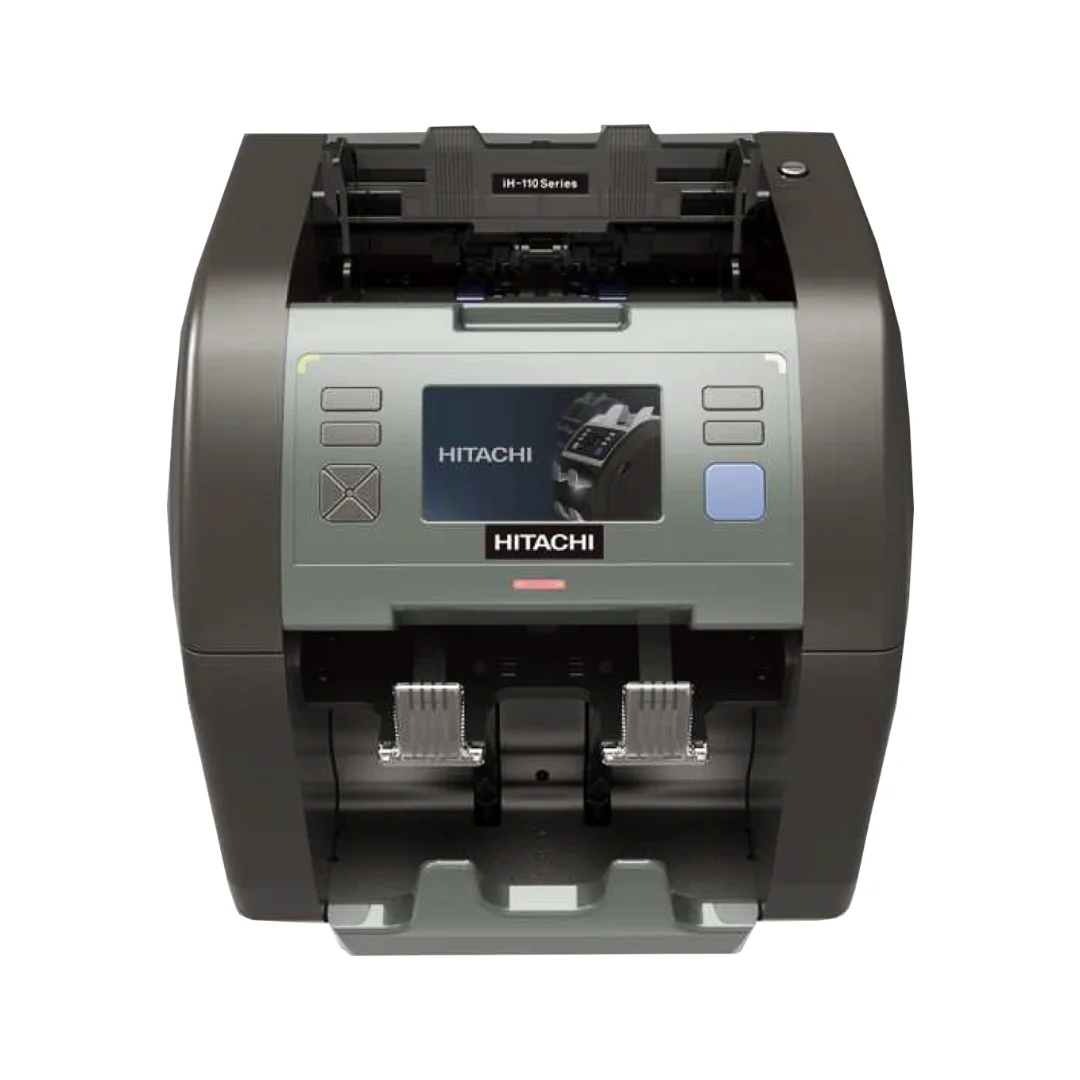

Hitachi IH-110 Series

Compact 2-pocket banknote sorter with cheque and ticket scanning. Ideal for bank branches, cash-in-transit, casinos, and retail.
    In stock
    Models:
    iH-110
    Basic type (Banknote discriminator)
    iH-110S
    Basic type + Color scanner for Cheque & Ticket
    iH-110F
    Basic type + Fitness sorter
    iH-110FS
    Basic type + Fitness sorter + Color scanner for Checks & Tickets
    iH-110B
    Barcode scanner
    High-Speed Image Processing
    • Full Color Dual CIS
    • Capture and Record of OCR, MICR, and Barcode
    • Deposit full color images
    • Supports over 40 currencies
    • Mix & Multi currency mode (Count mixed currencies with automatic recognition)
    Advanced Sensor Technologies
    • Equipped with a range of counterfeit detection technologies
    • Reliable fitness sorting
    • Excellent tape detection performance
    Remote Monitoring
    • Remote monitoring system via SIM link
    User-Friendly System
    • 2 Teller mode indicator and Multi-user mode available
    • 4.3-inch full color touch screen
    • Easily view all sensor data
    • Simple and easy operation
    • Easy maintenance
    Ideal Applications
    • Bank branches
    • Casinos
    • Exchange offices
    • Public offices
    • Retailers
    • Cash centers

Product Specifications

Currency
  • Up to 40 currencies
  • 16 currencies (Mix & Multi)
Operating Speed
  • Value Counting with Counterfeit Detection
  • Max 1300 NPM (Notes per Minute, Depends on Currency)
  • Fitness Sorting with Counterfeit Detection
  • Capture and Record: OCR, MICR, Tickets, etc.
  • Capture and Record: Full Color Image with OCR
  • Max 1200 NPM (Notes per Minute, Depends on Currency)
Pocket Capacity
  • Hopper (iH-110/iH-110S/iH-110B)
  • 500 Notes
  • Hopper (iH-110F/iH-110FS)
  • 1000 Notes
  • Reject Pocket
  • 60 Notes (Max 100 Notes)
  • Stacker
  • 200 Notes (Max 300 Notes)
Display
  • 4.3” Full Color LCD Touch Screen
Mode
  • Mix (Face, Orientation)
  • Different Denomination (Face, Orientation)
  • Count
  • Serial No.
  • Fitness
  • Other Modes
Dimensions (W/D/H)
  • iH-110/iH-110S/iH-110B
  • 300 x 320 x 315mm
  • iH-110F/iH-110FS
  • 300 x 320 x 345mm
Weight
  • iH-110/iH-110S/iH-110B
  • 13kg
  • iH-110F/iH-110FS
  • 14.5kg
Interface
  • LAN (Giga)
  • USB (H)
  • USB (S)
  • RS232C
Power Supply
  • 100 ~ 240V ±10%, 1.2A ~ 0.6A, 50/60Hz
Sensor Info
  • Full Color Dual CIS: 8 Images, IR Transmission, IR Reflection, RGB
  • Full Line Magnetic Sensor (16 Channel)
  • Thickness (Tape)/Double Detection Sensor (12 Channel / 2 Channel)
  • UV Reflection (4 Channel), Transmission (4 Channel), Fluorescence (4 Channel)
Options
  • External LCD Display
  • OSD (On Screen Display: Video Surveillance System)
  • Thermal Printer
