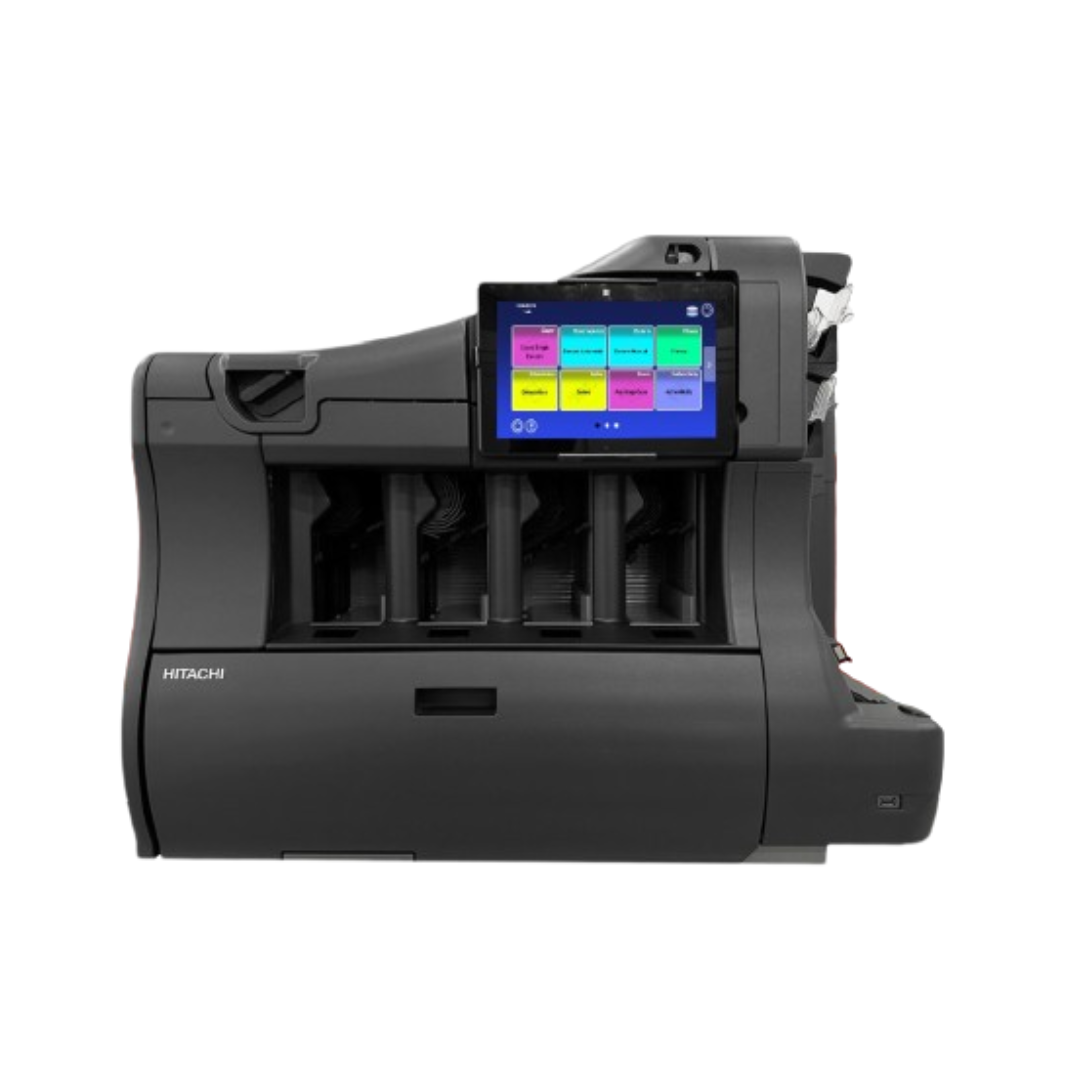

Hitachi MS-4200

MS-4200 is a fast reliable, precise, and multi-functional sorter that provides a broad selection of options. It is an ideal choice for back office in banks and cash-in-transit(CIT), as well as casinos and retails.
    Available on order only
    High throughput & High accuracy
    • It is optimized for higher throughput, enhanced efficiency, and easy operation
    • Easy guidance for any operators
    • Showing Jam point in the screen
    • Automatic assisted feeding mechanism
    • Descending type stacker pocket
    • Extension 4 pockets (Optional)
    • Automated banding function (Optional)

Product Specifications

Currency
  • No limit currency
  • MIX: up to 30 currency
Operation Speed
  • Max Speed
  • 1,200 banknotes / min
  • Max Throughput
  • 72,000 banknotes / hour
Pocket Capacity
  • Hopper
  • 1,200 notes
  • Stacker
  • 500 notes with 4 stackers
  • Reject
  • 250 notes with 2 reject pockets (1 reject pocket changeable as stacker)
Sensor Information
  • Dual Image Sensor with Full line UV
  • Infrared
  • Magnetic
  • Thickness Sensor (Mechanic)
Banknote Size
  • 60-85mm (V) x 100-177mm (H)
Dimension
  • 860(W) x 425(D) x 680(H) mm
Weight
  • 86kg, 120kg (Gross)

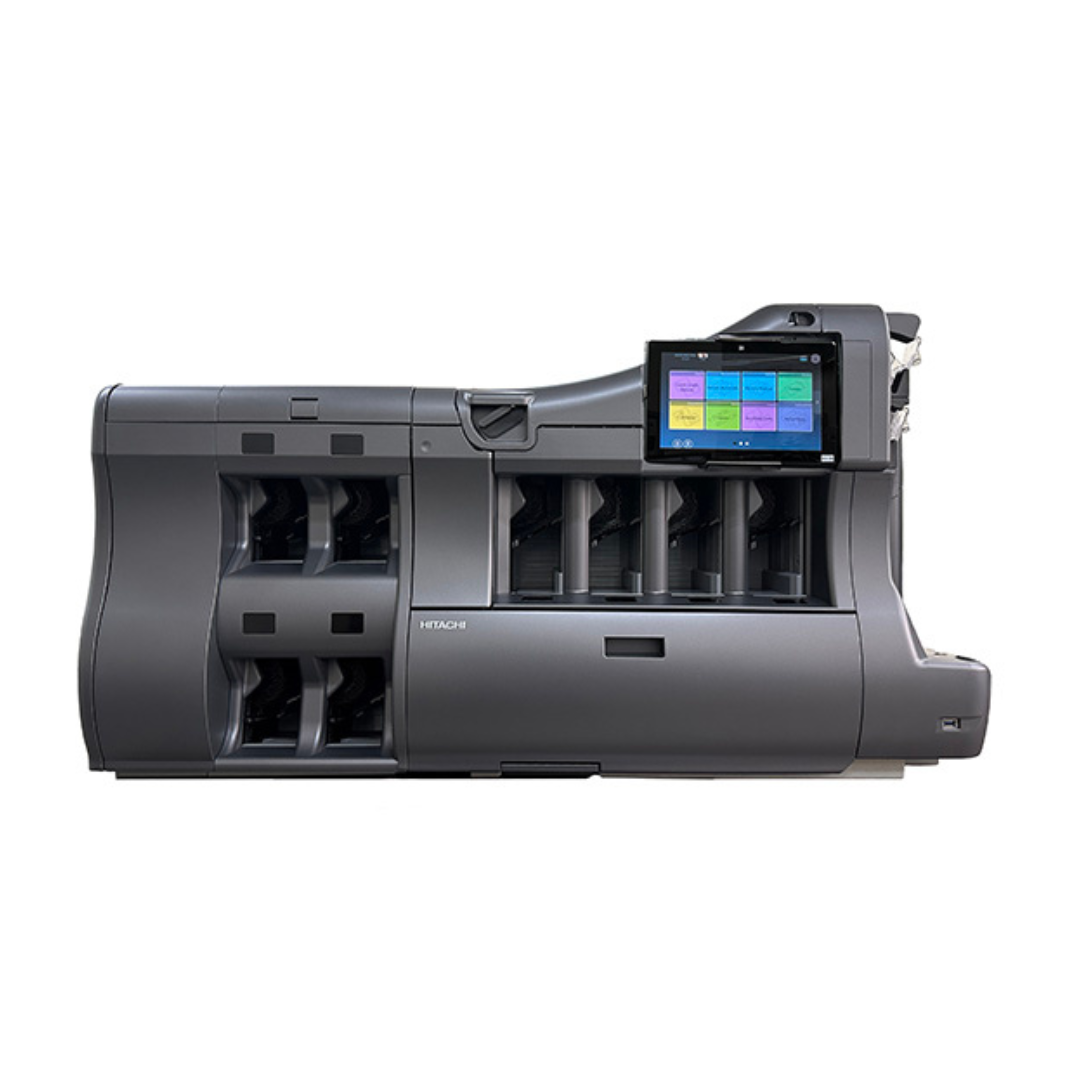

Extension 4 pocket (EX4) (Optional module)
  • Capacity
  • 250 notes with 4 stackers
  • Dimension
  • 415(W) x 425(D) x 560(H) mm
  • Weight
  • 45kg, 72kg (Gross)
  • Configuration
  • MS-4200+EX4: 8 stackers + 2 reject pockets
Banding unit (EX2B) (Optional module)
  • QR Code Print
  • Available
  • Banding Position
  • Adjustable
  • Expandability
  • Up to 2 banding units
  • Dimension
  • 885(W) x 425(D) x 560(H) mm
  • Weight
  • 137kg, 170kg (Gross)
