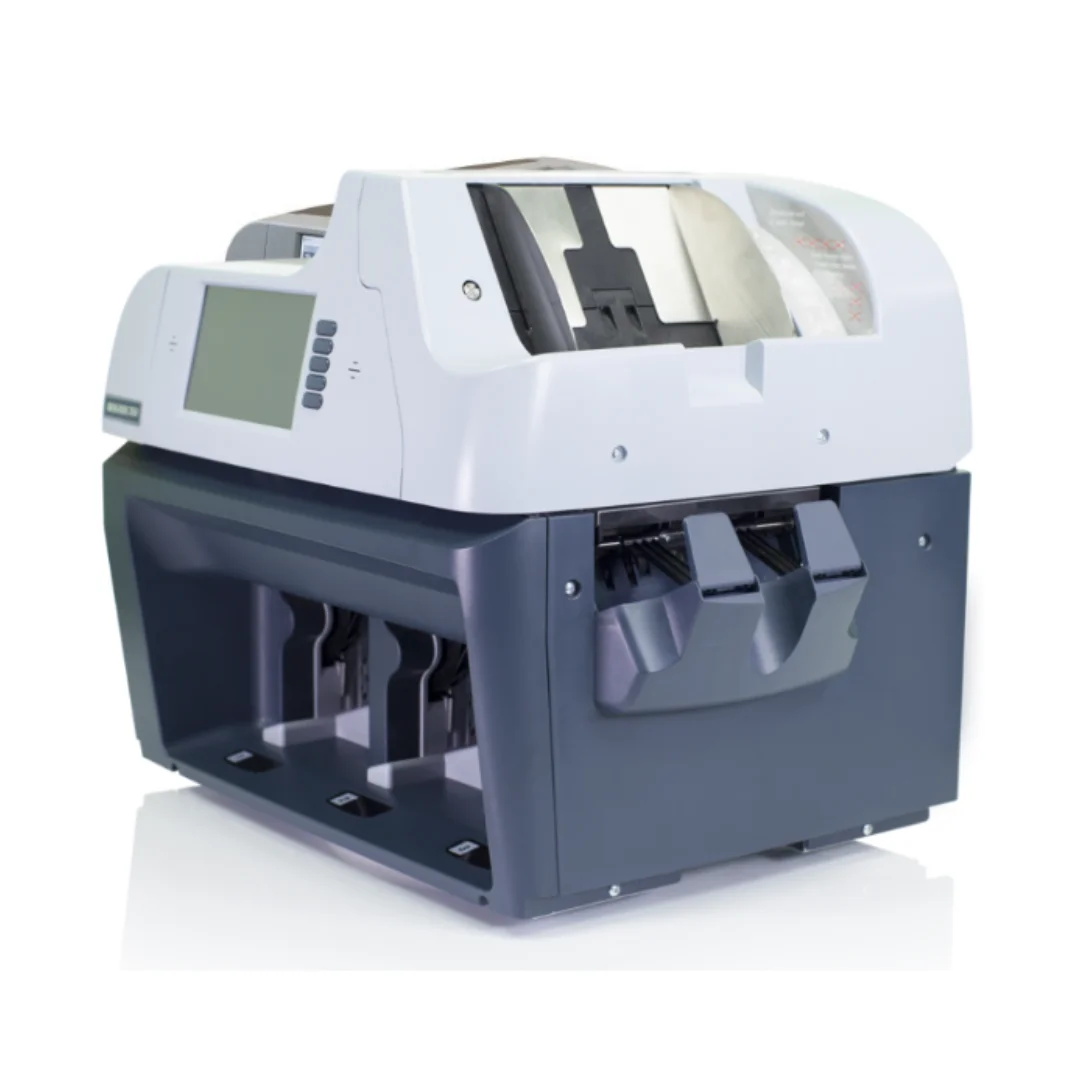

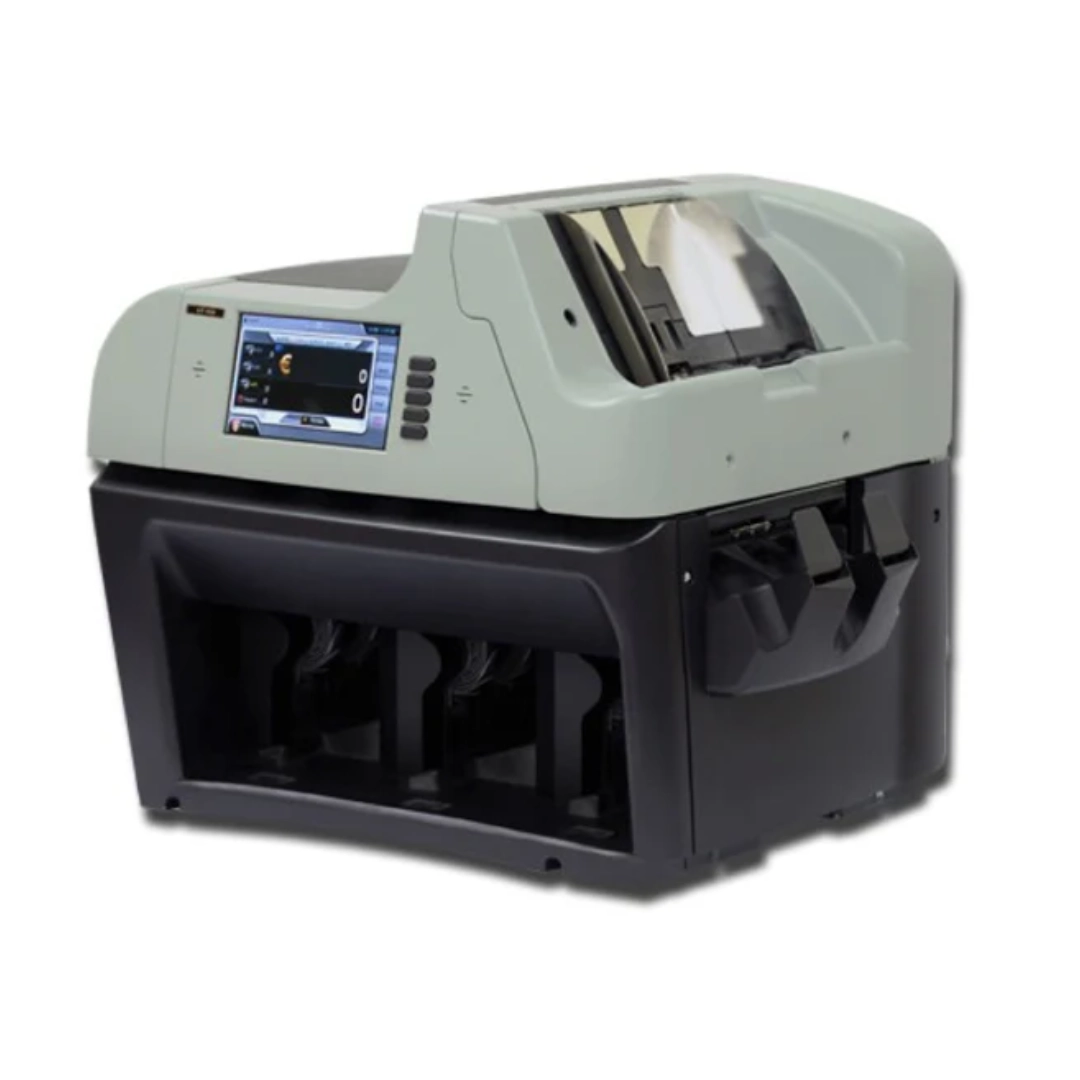

Hitachi ST-350N

ST-350 is a smart, practical multi-currency fitness sorter and banknote counter designed for user’s convenience. ST-350 is optimized for high performance, enhanced authentication and easy operation.
    Available on order only
    High-Speed Image Processing
    • High resolution dual CIS
    • High level fitness sorting
    • Capture and Record of OCR
    • Can be installed up to 20 currencies
    Advanced Counterfeit Detection
    • Equipped with range of counterfeit detection technologies
    Remote Monitoring
    • Connect with SIM link
    User-Friendly System
    • Multi user mode available
    • Highly visible 7” Full color touch screen
    • Simple and easy operation
    • Easy maintenance
    Ideal Applications
    • Bank (Cash Center)
    • CIT (Cash in Transit)

Product Specifications

Currency
  • Up to 20 Currencies
Operating Speed
  • Value Counting
  • 900 notes/min
  • Fitness Sorting
  • Serial Number Reading
  • 700 notes/min
Pocket Capacity
  • Hopper
  • 600 notes
  • Reject Pocket
  • 100 notes
  • Stacker x 3
  • 200 notes
Display
  • 7” Full Color Graphic LCD
Dimension
  • 534(W) x 454(D) x 481(H) mm
Weight
  • 47 kg
Power Supply
  • 100 ~ 240 V AC, 50/60 Hz
Countable Note Size
  • Length
  • 60 - 100 mm
  • Width
  • 100 - 180 mm
Counterfeit Detection
  • Full Line MG, CIS, IR, and UV
Communication
  • LAN
  • USB (USB port x 2)
  • RS232C
  • Video out (15 pin S-SUB)
Accessories
  • External display
  • Thermal printer
  • OSD (On Screen Display)
