Lidix GL Series

A power packed, rugged and heavy duty solution for todays challenging back office cash processing requirements. The machines use one of the most advanced processors available for superior performance and accurate authentication and high performance fitness sorting capable of operating even in multi currency environments.
    Available on order only
    Advanced Processing
    • Quad-Core processor for high-performance operation
    • Captures up to 14 different images of banknotes in a single pass
    Display and Capacity

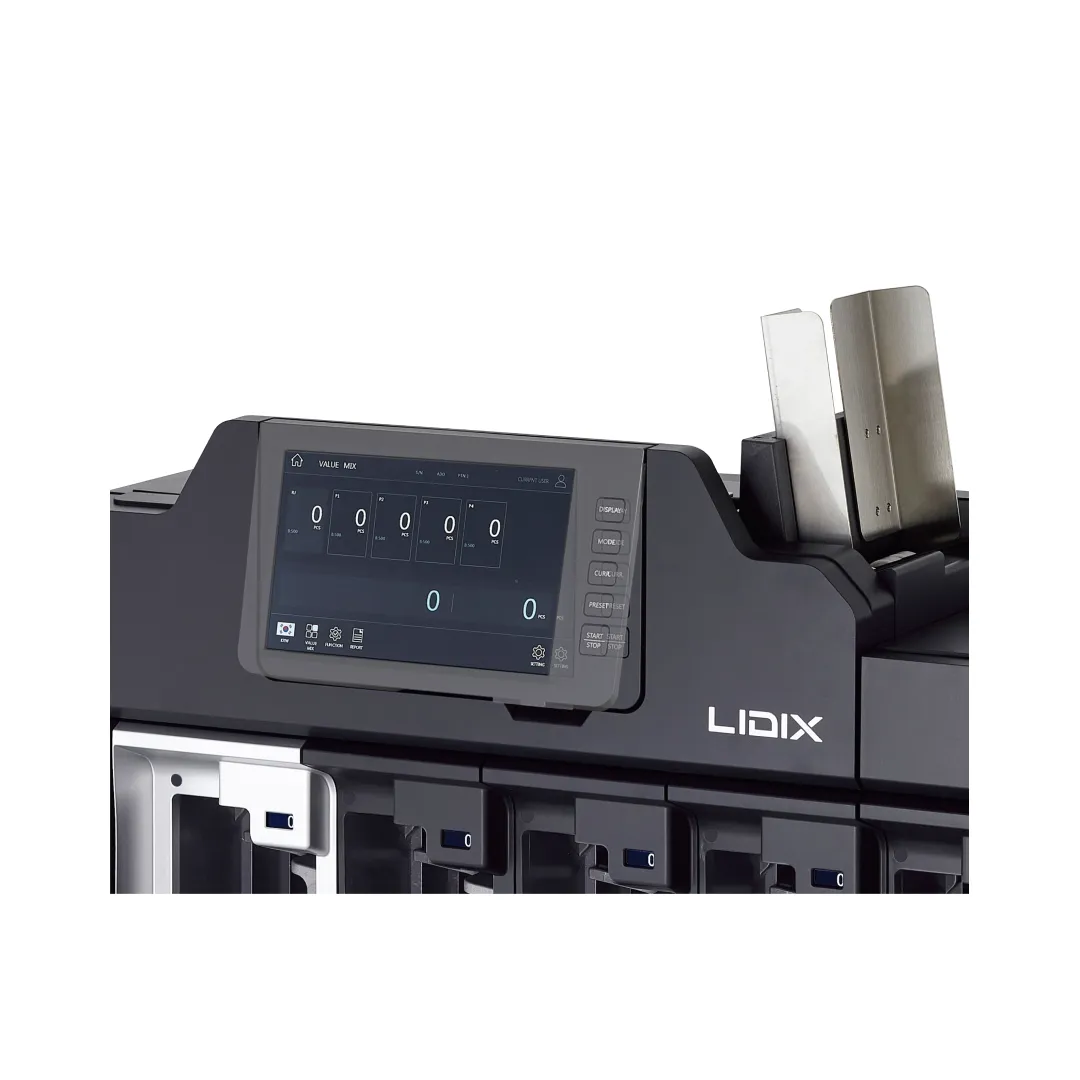

    • Large 10-inch main display
    • Large format reject pocket
    Sensor Expandability
    • Supports sensor expandability for enhanced functionality
    Connectivity Options
    • Various interfaces for multiple connectivity options
    Performance
    • Excellent fitness sorting performance
    • Versatile and dynamic operation in challenging environments
    Custom Configurations
    • Available in various configurations
    • Customizable to meet customer and end-use requirements

Product Specifications

Speed
  • Value Counting
  • Up to 1,500 Notes/Min
  • Serial Number (OCR)
  • Up to 1,200 Notes/Min
  • Fitness Sorting
  • Up to 1,000 Notes/Min (F model only)
Operating Modes
  • Piece Count
  • Value Count
  • Denomination Sorting
  • Face & Orientation Sorting
  • Fitness Sorting (F model only)
Sensors
  • Dual CIS
  • IR
  • UV
  • MG
  • Ultrasonic (F Model only)
Software Upgrade
  • Offline
  • Via SD Card or USB
  • Online
  • Via LAN
Interface
  • LAN
  • USB
  • SD Card
  • RS232C
Multi-currency Processing
  • Up to 50 currencies
  • Customizable Auto-Currency Mode allows running multiple currencies at the same time

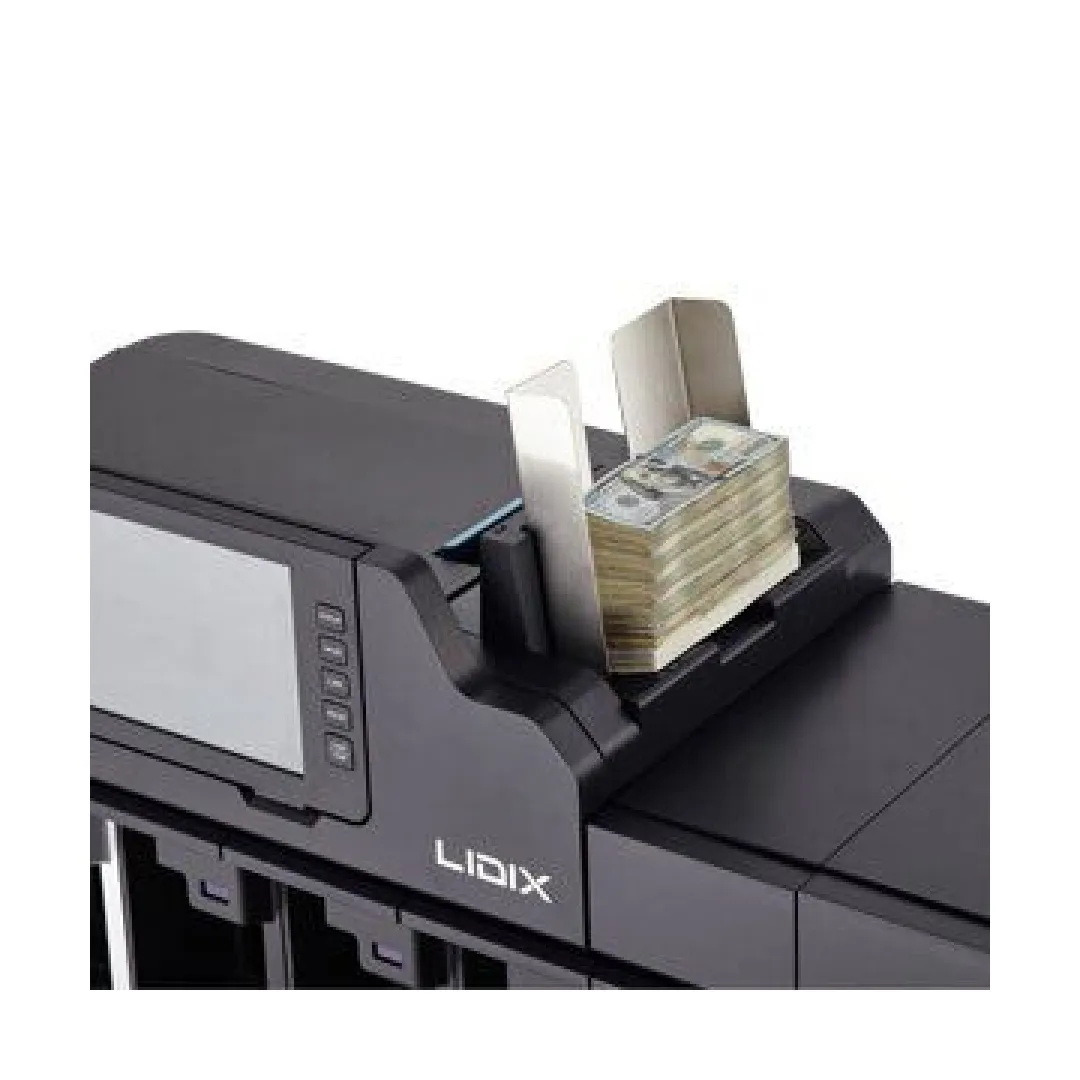

Hopper Capacity
  • 500 notes
Stacker Capacity
  • 200 notes (Stacker 1 & 2)
Reject Capacity
  • 100 notes
Display

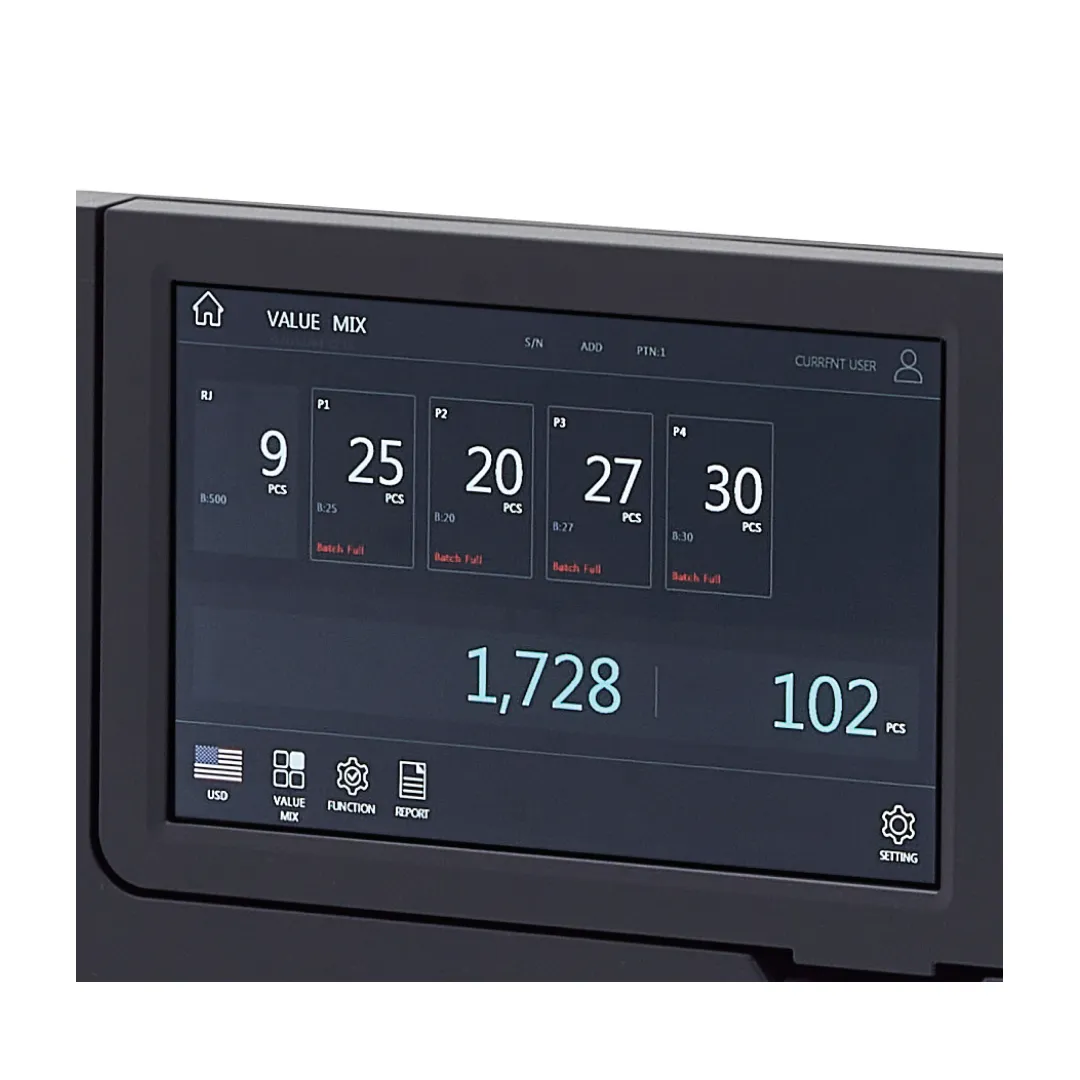

  • 5" Full Colour LCD Touch Screen
Dimensions (W x D x H)
  • 300mm x 392mm x 298mm
Weight
  • 15 Kg
Power Supply
  • AC 110-240V, 50-60 Hz
Power Consumption
  • Standby
  • 70W
  • Operating
  • 110W
Peripherals (Optional)
  • External Customer Display
  • Thermal Printer
External Operating Conditions
  • Dust Level - Below 5 microns
  • Operating Temperature - 15 to 35 Celsius
  • Relative Humidity - 35% to 80% (non-condensing)
