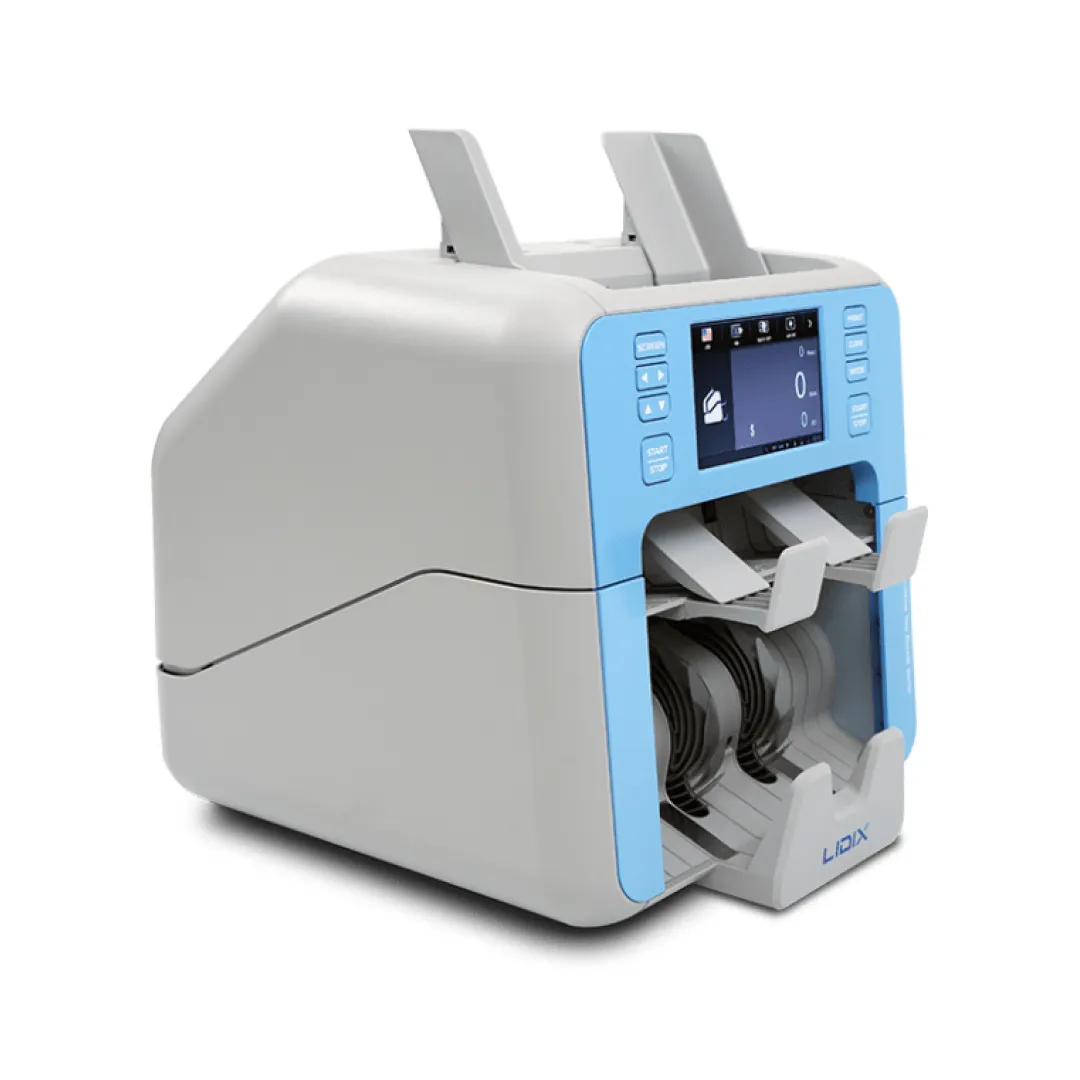

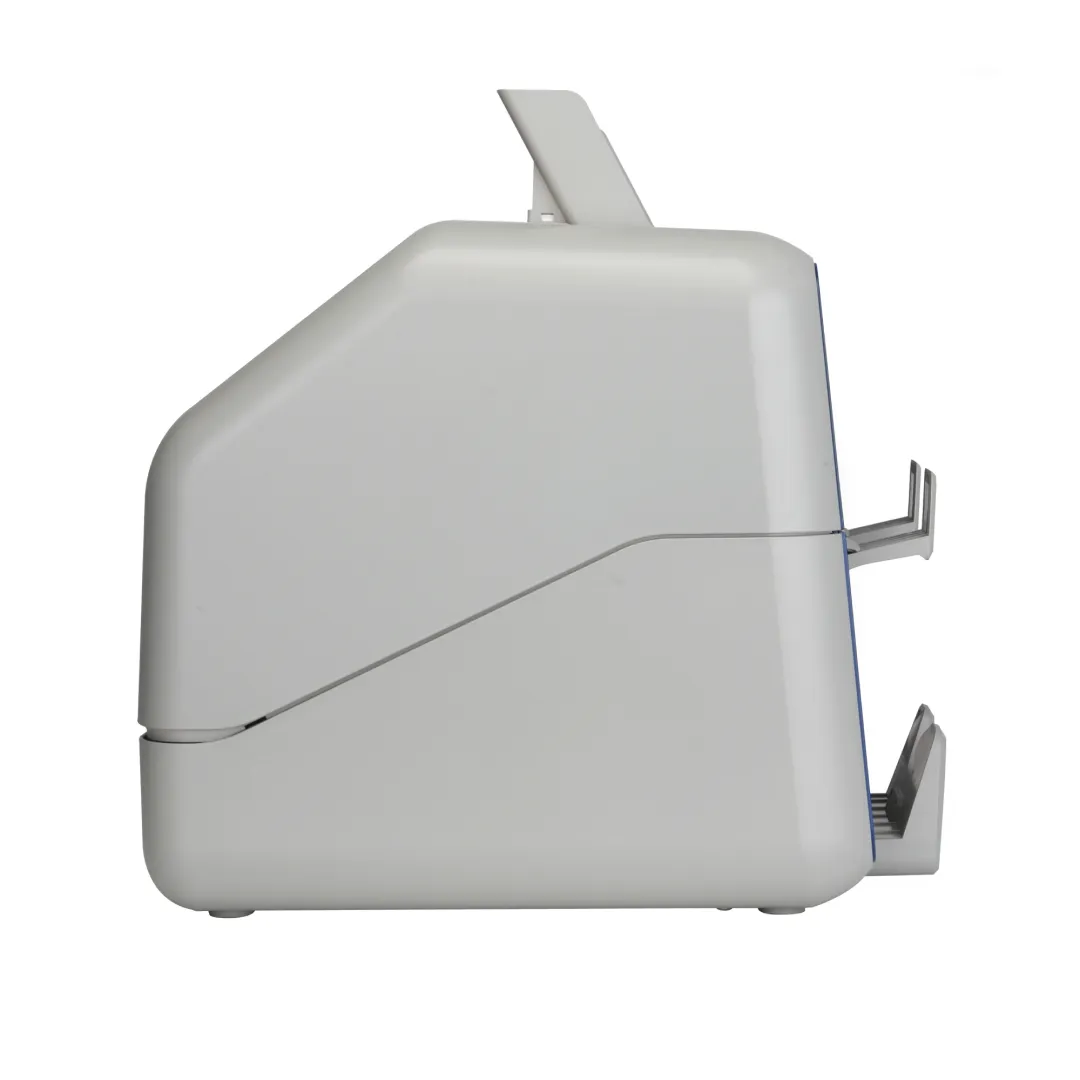

Lidix ML-2VS

A robust and high performance desktop counter with a proven track record in various environmental conditions. It offers stable feeding performance with both plastic polymer and cotton substrate banknotes in various states of fitness. The machines use one of the most advanced processors available for superior performance and accurate authentication.
    In stock
    High Performance
    • Robust desktop counter
    • Proven track record in various environmental conditions
    Stable Feeding
    • Stable feeding performance with plastic polymer and cotton substrate banknotes
    • Handles banknotes in various states of fitness
    Advanced Processing
    • Uses one of the most advanced processors for superior performance
    • Accurate authentication
    Display
    • Large 5-inch full colour display
    • Ultra fast booting time
    Connectivity Options
    • Various interfaces for multiple connectivity options
    Versatility
    • Versatile and dynamic operation in various environments

Product Specifications

Speed
  • Value Counting
  • Up to 1,500 Notes/Min
  • Serial Number (OCR)
  • Up to 1,200 Notes/Min
  • Fitness Sorting
  • Up to 1,000 Notes/Min (F model only)
Operating Modes
  • Piece Count
  • Value Count
  • Denomination Sorting
  • Face & Orientation Sorting
  • Fitness Sorting (F model only)
Sensors
  • Dual CIS
  • IR
  • UV
  • MG
  • Ultrasonic (F Model only)
Software Upgrade
  • Offline
  • Via SD Card or USB
  • Online
  • Via LAN
Interface
  • LAN
  • USB
  • SD Card
  • RS232C
Multi-currency Processing
  • Up to 50 currencies
  • Customizable Auto-Currency Mode allows running multiple currencies at the same time
Hopper Capacity
  • 500 notes
Stacker Capacity
  • 200 notes
Reject Capacity
  • 100 notes
Display
  • 5" Full Colour LCD Touch Screen
Dimensions (W x D x H)
  • 300mm x 392mm x 298mm
Weight
  • 15 Kg
Power Supply
  • AC 110-240V, 50-60 Hz
Power Consumption
  • Standby
  • 70W
  • Operating
  • 110W
Peripherals (Optional)
  • External Customer Display
  • Thermal Printer
External Operating Conditions
  • Dust Level - Below 5 microns
  • Operating Temperature - 15 to 35 Celsius
  • Relative Humidity - 35% to 80% (non-condensing)
