Ribao BCS-160

The BCS-160 model is an non-stop 1+1 pocket banknote discriminator and sorter that is cost effective, reliable, and heavy duty. It is equipped with double CIS, the latest counterfeit detection technology. It is very easy to update the software by USB with the new issues and counterfeit banknotes.
    In stock
    Top Loading Design

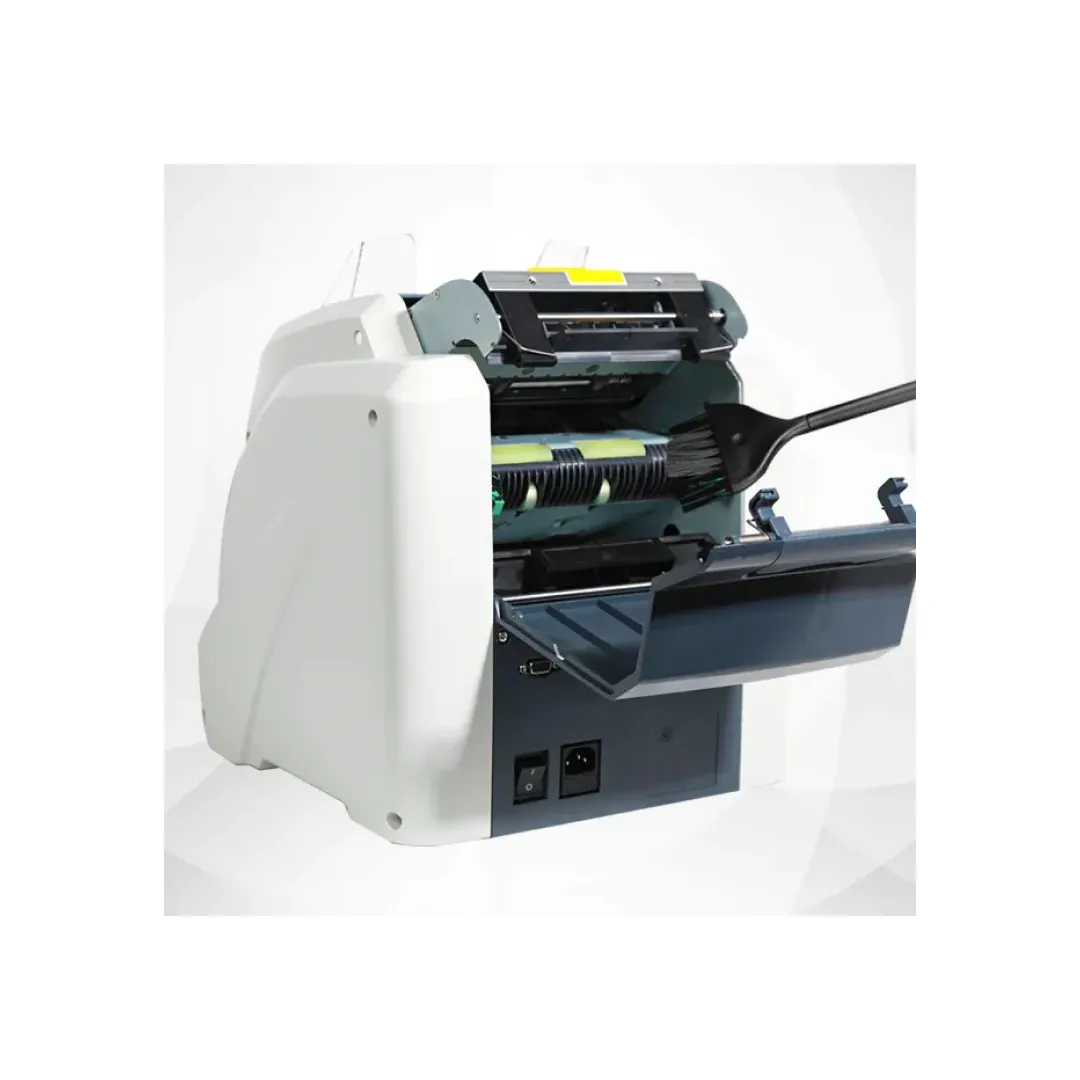

    • Fully opened back cover, 100% accessible to passage for daily cleaning and maintenance
    Large Capacity

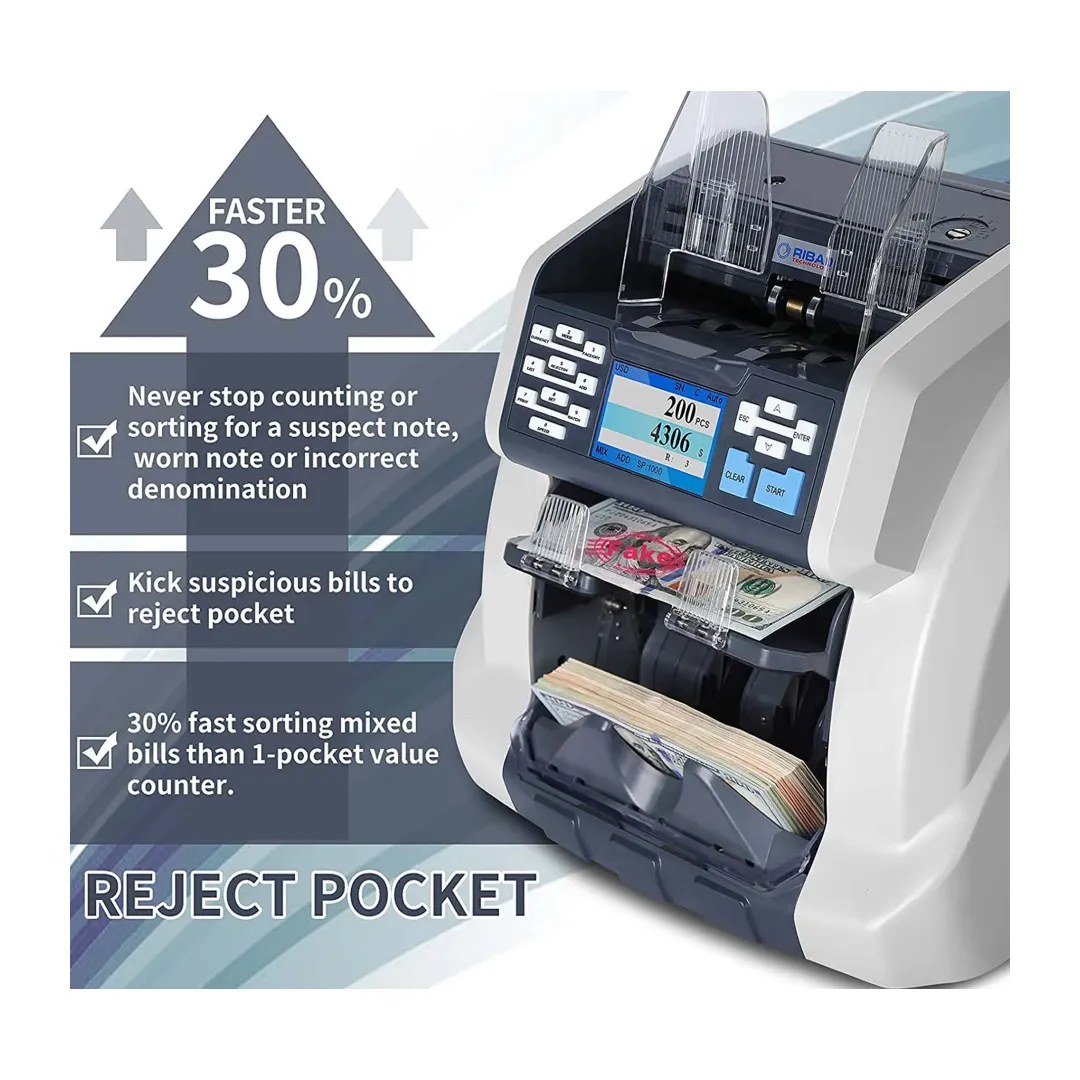

    • Non-stop counting with 600pcs hopper capacity, 200pcs stacker capacity, and 100pcs reject pocket capacity
    External Interface
    • Support multiple peripheral connections (PC, Printer, External display)
    • Easy to update the software by USB drive
    Low Operating Noise
    • Provides a quiet money counting environment for you and your customers
    Lifetime Software Upgrade
    • US-based service team answers your questions within 12 hours and provides a solution within 48 hours
    Applicable Scenarios
    • Suitable for banks, supermarkets, police departments, money exchange points

Product Specifications

Hopper Capacity
  • 600pcs
Stacker Capacity
  • 200/250pcs

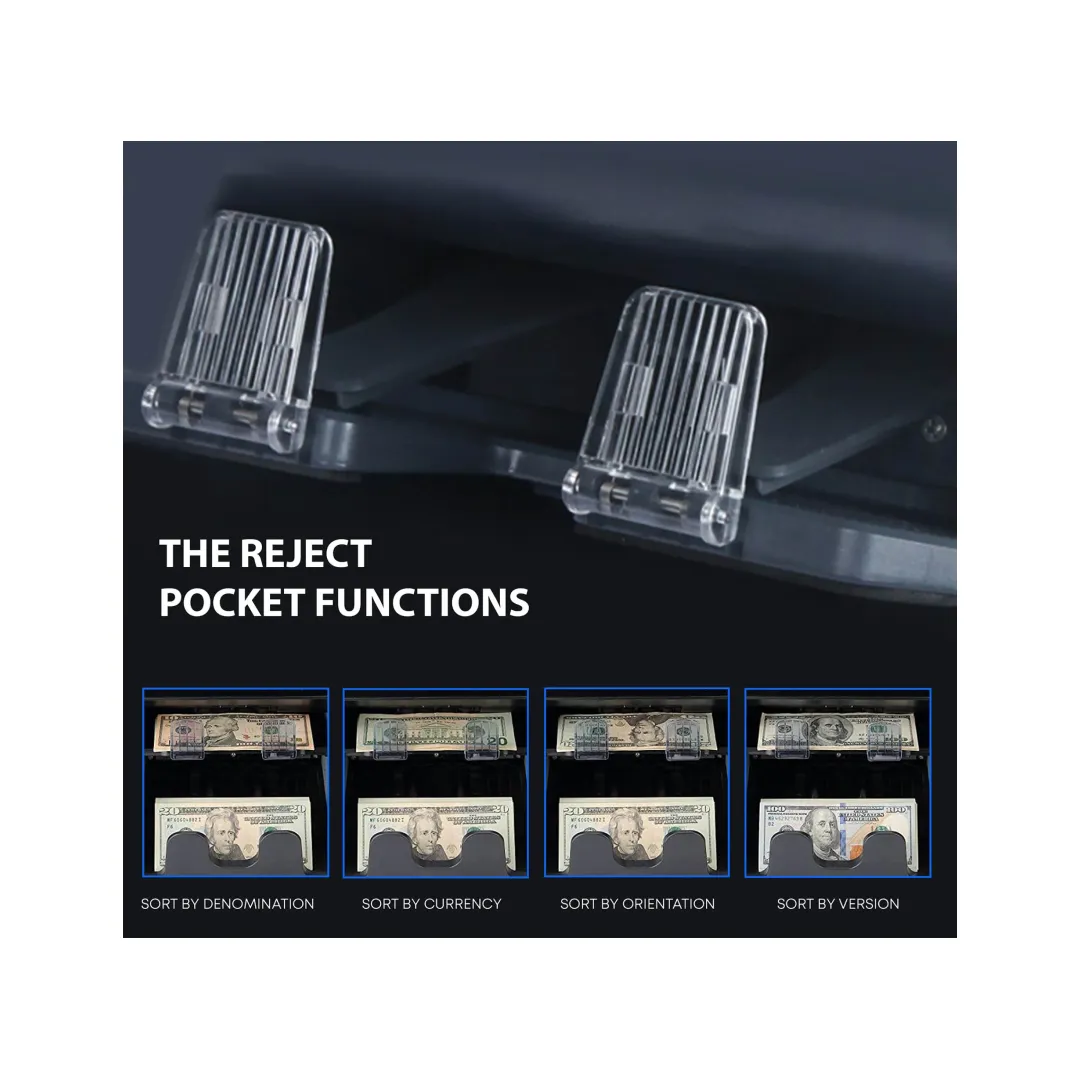

Rejected Pocket Capacity
  • Max 100pcs
Display
  • 3.5 inch Touch Screen
Suitable Note Size
  • Length
  • 85mm~185mm
  • Width
  • 50mm~100mm
Suitable Note Thickness
  • 0.05mm~0.12mm
Speed (Pcs / Min)
  • SDC & MIX mode
  • 800/1000pcs/min
  • CNT mode
  • 1200pcs/min
Batch Number
  • 0-200pcs
Connectivity
  • External printer/PC port: RS232
  • LAN port: RJ45
  • External display port: RJ12
  • Software upgrade / Information collection port: USB / LAN
  • Save counted information port: Micro-SD card
Available Currency Software
  • More than 40 currencies

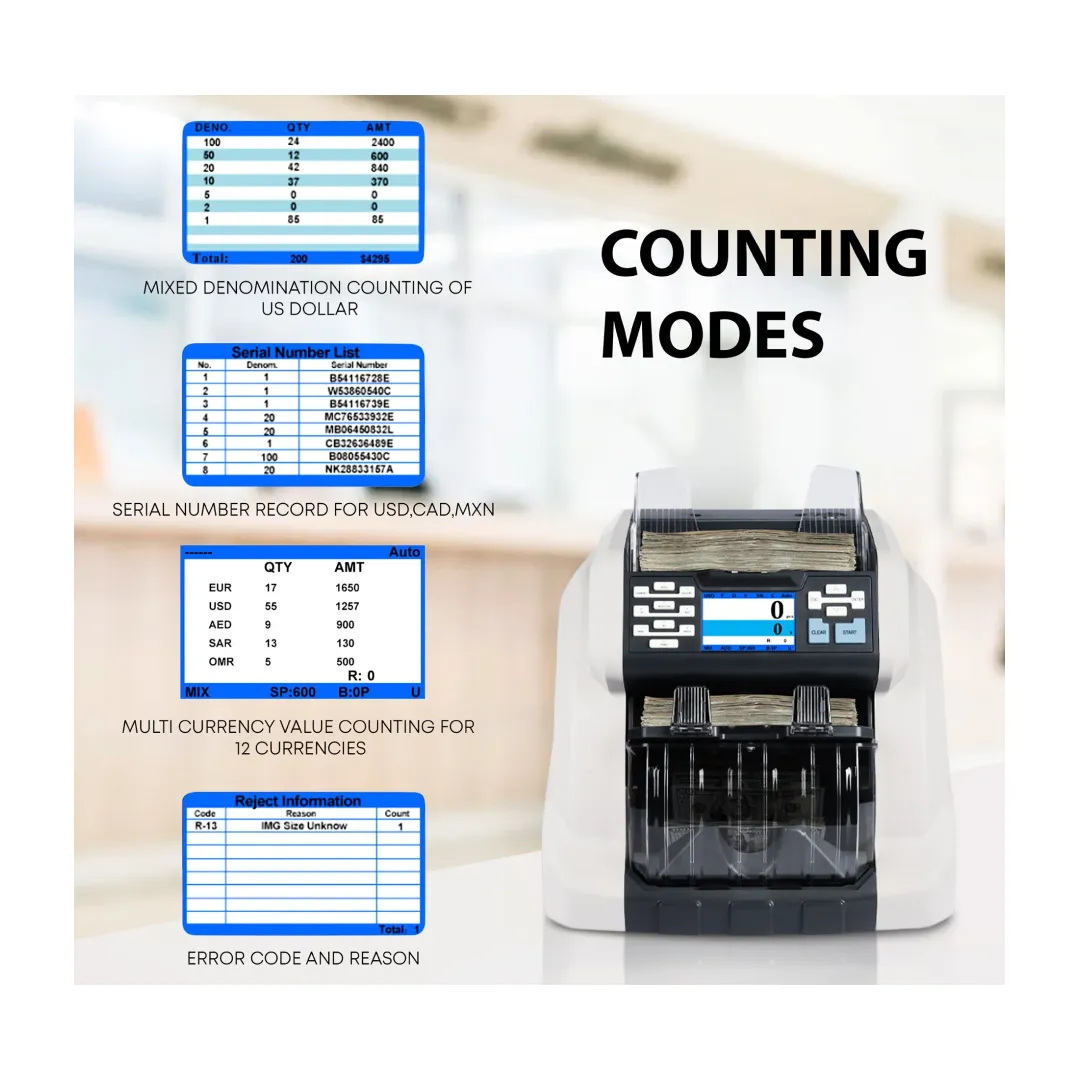

Operation Modes
  • Single denomination sorting
  • Mix counting
  • Pieces counting
  • Face
  • Orientation sorting
  • Dual operation mode
  • Dust cover

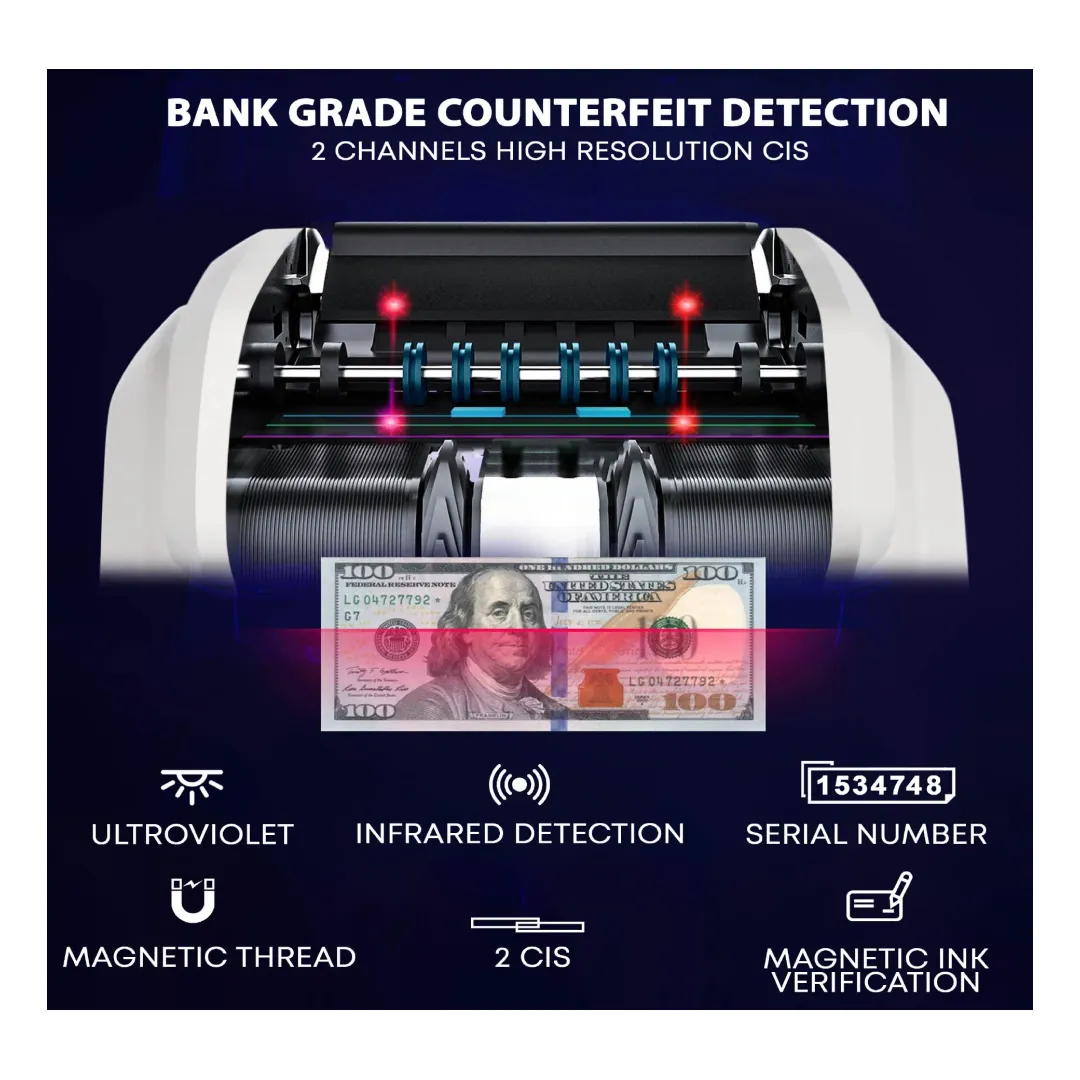

Counterfeit Detection
  • Ultraviolet detection (UV)
  • Magnetism detection (MG)
  • Metal thread detection (MT)
  • Infrared image detection (IR)
Power Supply
  • AC 220V 50Hz ± 10%
  • AC 110V 60Hz ± 10%
Power Consumption
  • Sleeping Mode
  • ≤15W
  • Operation Mode
  • ≤75W
Working Condition
  • Temperature (0-40℃)
  • Humidity (40-90%)
Storing Condition
  • Temperature (-40-55℃)
  • Humidity (10-95%)
  • Air Pressure (70-106kPa)
